Hung Ta InstrumentHung Ta / Universal Testing Machine
HT-9501

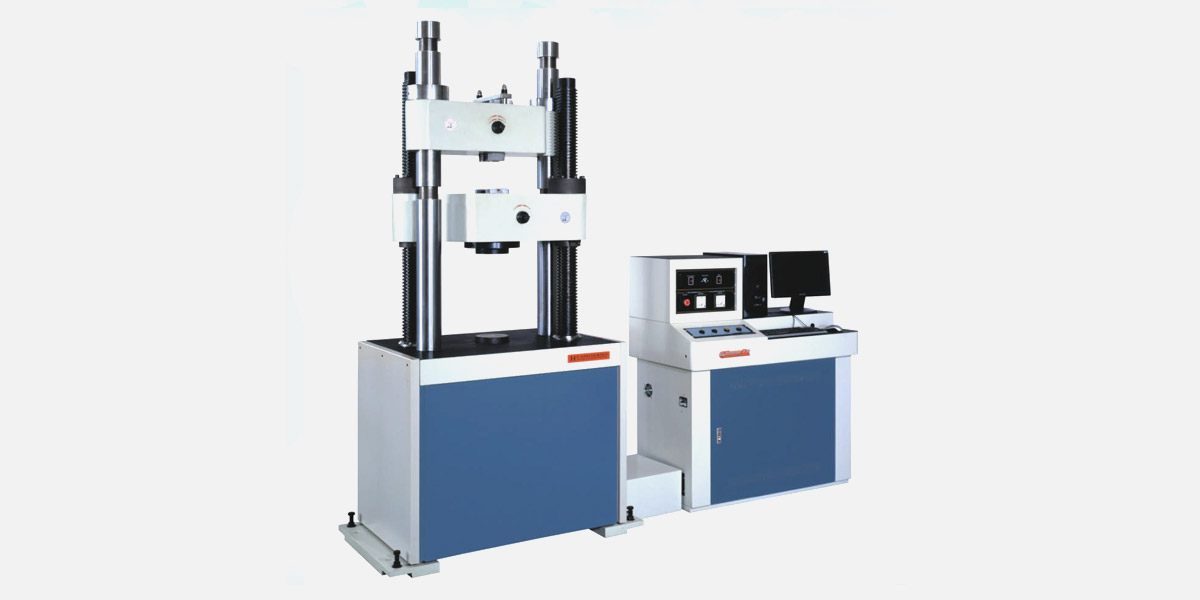

Electro-Hydraulic Servo Universal Testing Machine
Electro-hydraulic servo universal testing system for high-force material testing. Discuss metal specimens, load range, grips and extensometer requirements with our Malaysia team.
- Capacity
- 300 ~ 4,000 kN
- Load Accuracy
- ±1% (Class 1), optional ±0.5%
- Force Resolution
- 1/200,000 (Hung Ta Interface Card)
Malaysia team in Seremban. Monday-Friday, 8:30 AM-6:00 PM.
Technical specifications
Listed catalogue specifications for HT-9501. Final capacity, accuracy class, test methods and supplied fixtures depend on the configuration confirmed in your quotation.
| Capacity | 300 ~ 4,000 kN |
|---|---|
| Load Accuracy | ±1% (Class 1), optional ±0.5% |
| Force Resolution | 1/200,000 (Hung Ta Interface Card) |
| Drive System | Electro-hydraulic servo |
| Tests | Tensile, compression, shear, bending, peeling |
Complete your testing system
Grips and specimen fixtures
Send specimen shape, dimensions, material and expected force. Grip faces, bending supports and compression platens must match the sample and machine interface.
Read the grip selection guide →Calibration and machine support
Discuss the working range, location, required records and due date. Review the required service scope before arranging an appointment.
Calibration support in Malaysia →Before requesting your quotation
- Material, specimen dimensions and required test method.
- Expected maximum force, test speed and elongation measurement needs.
- Required grips, fixtures, software reports and site installation details.
- Company, factory location, delivery timing and documentation requirements.
