WDS-20

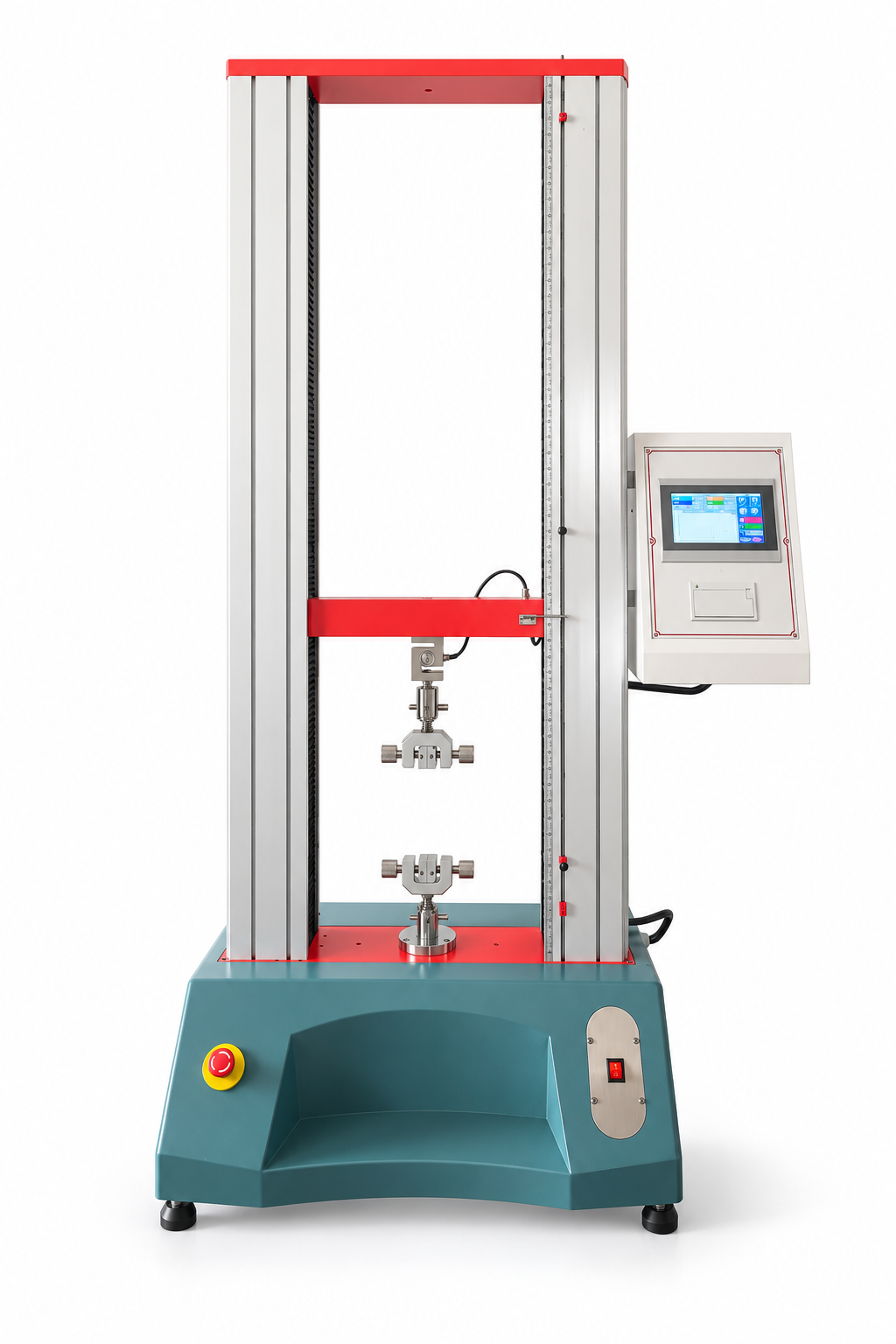

Dual Column Touchscreen Tensile Testing Machine
ARMSTRONG WDS-20 dual-column touchscreen tensile testing machine in Malaysia. Servo drive, 1-500 mm/min test speed and 800 mm travel excluding grips. Request configuration and capacity confirmation.
- Capacity
- Configured load range confirmed in quotation
- Control
- TS7003L touchscreen measurement and control system
- Drive System
- Servo motor, dual-column frame
Malaysia team in Seremban. Monday-Friday, 8:30 AM-6:00 PM.
Technical specifications
Listed catalogue specifications for WDS-20. Final capacity, accuracy class, test methods and supplied fixtures depend on the configuration confirmed in your quotation.
| Capacity | Configured load range confirmed in quotation |
|---|---|
| Control | TS7003L touchscreen measurement and control system |
| Drive System | Servo motor, dual-column frame |
| Tests | Tensile; compression with suitable fixtures |
| Test speed | 1-500 mm/min |
| Maximum travel | 800 mm excluding grips |
| Force Accuracy | +/-1% per supplied manual; verify configured range |
| Force Resolution | 1/25,000 |
| Force units | kg, N, lb |
| Machine dimensions | 1010 x 490 x 1730 mm |
| Weight | Approximately 150 kg |
| Power supply | Single-phase 220 V; confirm electrical rating before installation |
Complete your testing system
Grips and specimen fixtures
Send specimen shape, dimensions, material and expected force. Grip faces, bending supports and compression platens must match the sample and machine interface.
Read the grip selection guide →Calibration and machine support
Discuss the working range, location, required records and due date. Review the required service scope before arranging an appointment.
Calibration support in Malaysia →Before requesting your quotation
- Material, specimen dimensions and required test method.
- Expected maximum force, test speed and elongation measurement needs.
- Required grips, fixtures, software reports and site installation details.
- Company, factory location, delivery timing and documentation requirements.
